1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 3/5mm

4. Number of PIN: 10/20/30/40/50/60/80/120pos

5. Guide design brings superior fit (guide amount: 1.2mm)

6. Unique terminal contact design improves contact performance

7. The functional design with grounding plate better ensures the reliability of the board

1. Connection method: vertical, horizontal

2. Stacking height: 8/10/12/14/15/17/19/20/23/25/30mm

3. Number of PINs: 20/30/40/50/60/80/100/120pos

4. Unique terminal contact design improves contact performance

5. High-speed PCI-E4.0 16Gbps

6. The functional design with grounding plate better ensures the reliability of the board.

7. Power terminal 5A/PIN, signal terminal 0.5A/PIN

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical, horizontal

3. Stacking height: 5/8/10mm

4.PIN number:20/30/40/50/60/80/100/120pos

5. Unique terminal contact design improves contact performance

6. Signal terminal 0.5A/PIN

7. High speed 16Gbps

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5~25mm

4. Number of cores: 60/120/180/240/300pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7. High-speed PCI-E4.0 16Gbps

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5/8mm

4. Number of cores: 40/80/120/160/220pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7. High-speed PCI-E4.0 16Gbps

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 1.5/2.0/2.5/3.0mm

4. Number of cores: 10~100pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5~15mm

4. Number of cores: 10~120pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 3~8mm

4. Number of PIN: 06~80pos

5. Guide design brings superior fit (guide amount: 1.2mm)

6. Unique terminal contact design improves contact performance

1.0.5mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5~10mm

4. Number of cores: 10~120pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

Detailed specifications

1. 0.5mm pitch

2. Connection method: horizontal / vertical /parallel

3. Stacking height: 2 to 3mm

4. Pin options: 10/20/30/40/50/60/70/80 / pos

5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

6. The unique terminal contact design enhances the mating performance

7. Supports 4 Gbps PAM4 performance

8. Contact finish : Gold plating

9. Plastic material: LCP

10. Production cycle: 1-2 weeks

11. Packaging method: tape and reel

Detailed specifications

1. Floating range: within ±0.6mm in the XY axis direction

2. Anti-shock frequency: 5GHZ

3. Signal terminal: 0.5A/pin

4. Combined height: 25mm

5. The ±1.2mm chimeric induction design facilitates simple and rapid connection

6. Number of cores: 20/30 60/80/40/50/140/100/120 / pos

7. Compatible with KEL DT10 DT00 series

8. Contact finish : Gold plating

9. Plastic material: LCP

10. Production cycle: 30-40 days

11. Packaging method: tape and reel

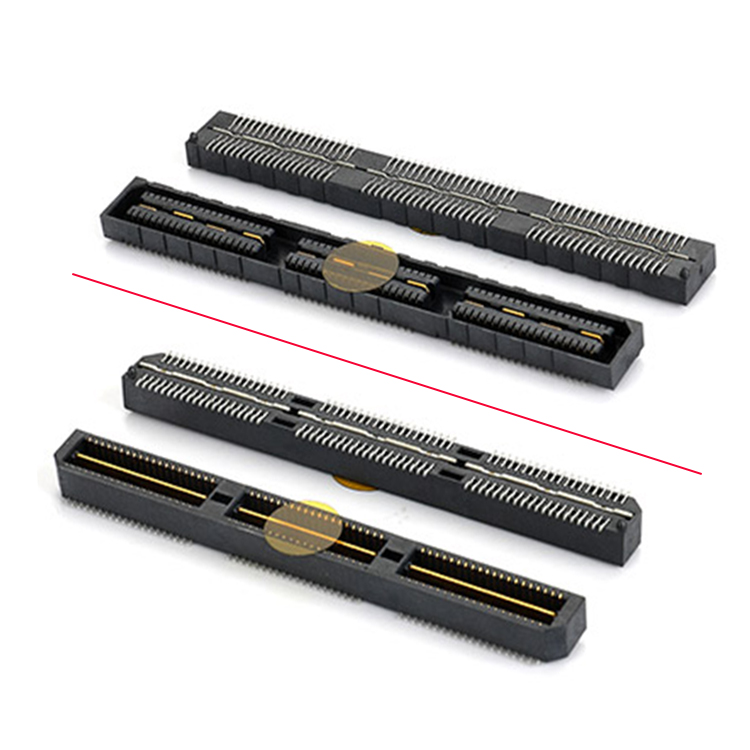

1. 0.5 to 0.8mm pitch

2. Comply with the PCIE-4.0 standard

3. Stacking height: 5 to 30mm

4. Number of cores: 40,80.120, 160.200pos

5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

6. The unique terminal contact design enhances the mating performance

7. Compatible with the entire QTH, QSH, QTE and QSE series of Samtec

8. Contact finish : Gold plating

9. Plastic material: LCP

10. Production cycle: 15-20 days

11. Packaging method:  tape and reel

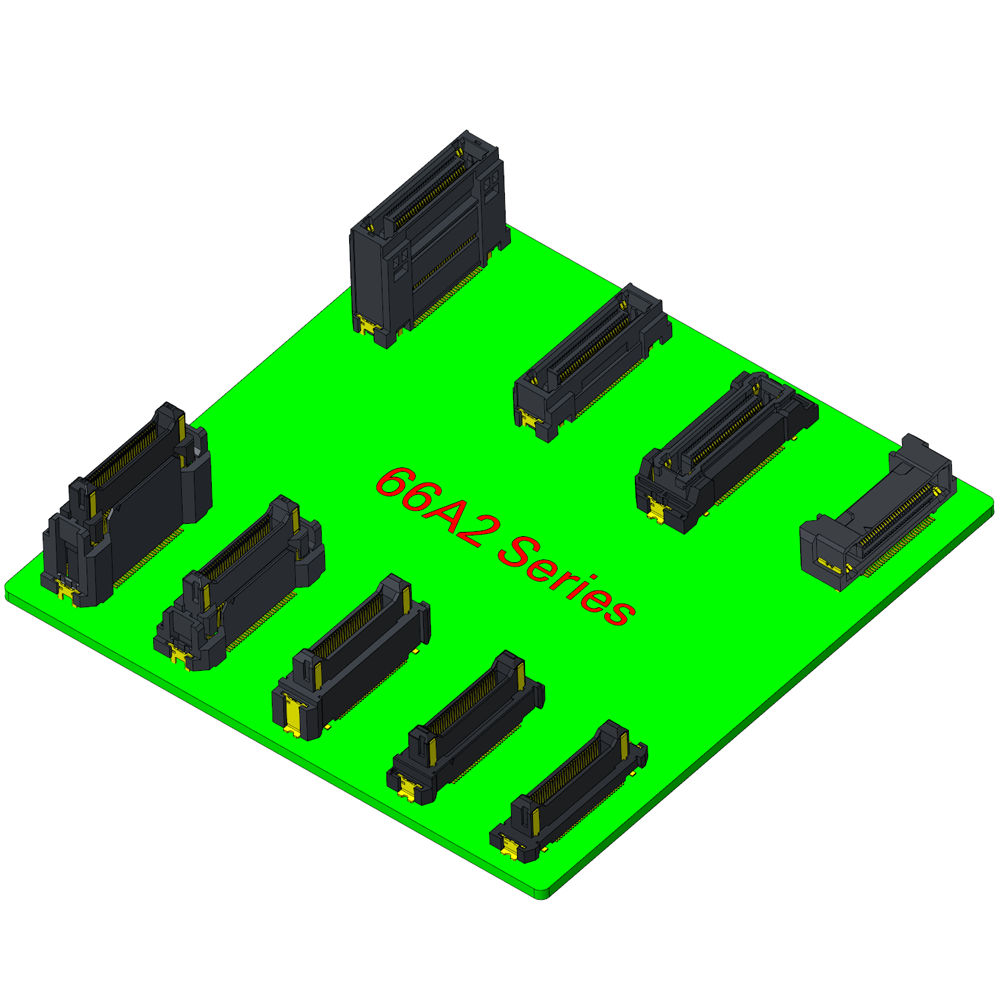

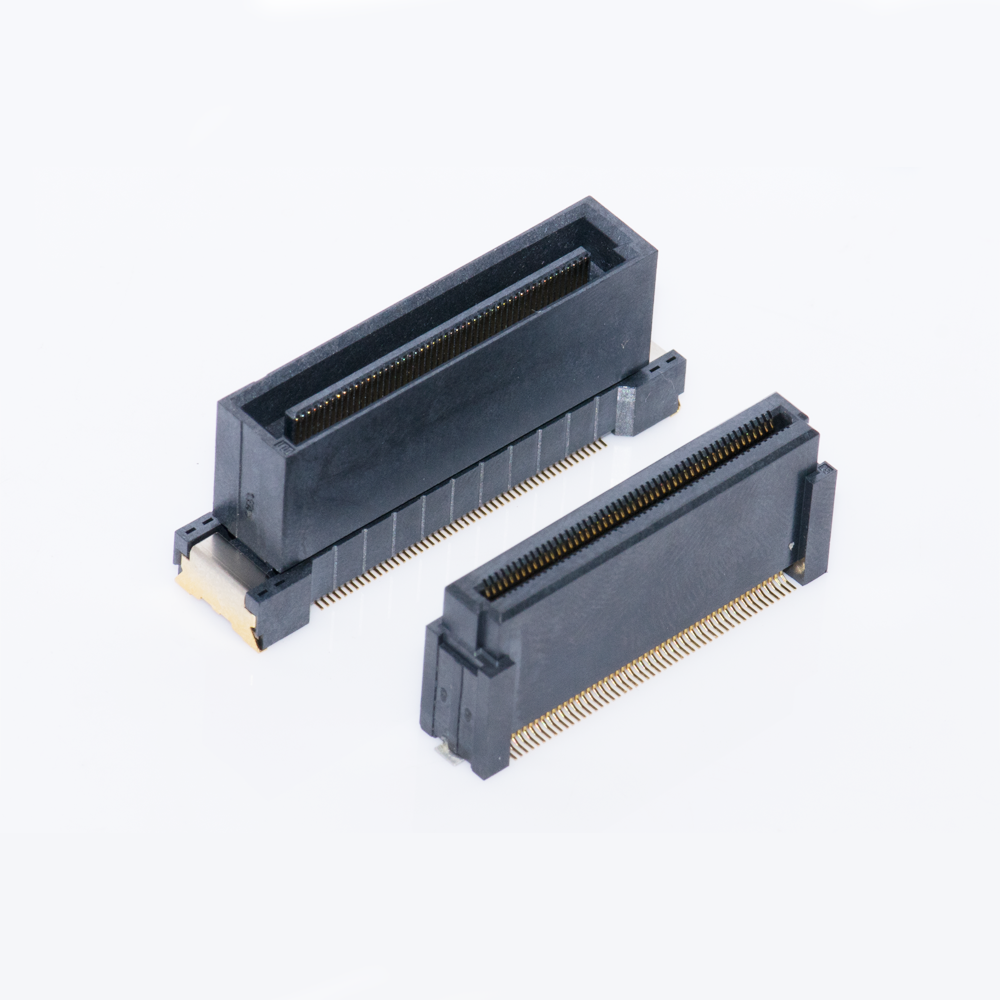

1.Floating amount: Within ±0.6mm in the XY-axis direction

2.Power and Signal Combined Connector (5A * 4 pins)

3. Current capacity per signal terminal: 0.5A/core

4.Stack height: 8, 10, 12, 15, 18, 19, 20, 25, 30 mm

5.The larger guiding design facilitates engagement.

6.Core number: 20/30/40/50/60/80/100/120 pos

7.Compatible with the entire series of FX23/FX23L

8. Material part number: 66A2-XXXXXXXXXXX

9. Electroplating requirements: Gold plating 3u - 15u

10. Plastic material: LCP

11.Production cycle: 10 - 15 days

12. Packaging method: Tape and reel packaging

FX23L-20P-0.5SV match to Solepin P/N：66A2-F020G2060R01

FX23L-40P-0.5SV  match to Solepin P/N：66A2-F040G2060R01

FX23L-60P-0.5SV match to Solepin P/N：66A2-F060G2060R01

FX23L-80P-0.5SV match to Solepin P/N：66A2-F080G2060R01

FX23L-100P-0.5SV match to Solepin P/N：66A2-F100G2060R01

FX23L-120P-0.5SV match to Solepin P/N：66A2-F120G2060R01

FX23-20P-0.5SV match to Solepin P/N：66A2L-F020G2060R01

FX23-40P-0.5SV match to Solepin P/N：66A2L-F040G2060R01

FX23-60P-0.5SV match to Solepin P/N：66A2L-F060G2060R01

FX23-80P-0.5SV match to Solepin P/N：66A2L-F080G2060R01

FX23-100P-0.5SV match to Solepin P/N：66A2L-F100G2060R01

FX23-120P-0.5SV match to Solepin P/N：66A2L-F120G2060R01

FX23L-20P-0.5SV8 match to Solepin P/N：66A2-M020G2069R01

FX23L-40P-0.5SV8 match to Solepin P/N：66A2-M020G2069R01

FX23L-60P-0.5SV8 match to Solepin P/N：66A2-M020G2069R01

FX23L-80P-0.5SV8 match to Solepin P/N：66A2-M020G2069R01

FX23L-100P-0.5SV8 match to Solepin P/N：66A2-M020G2069R01

FX23L-120P-0.5SV8 match to Solepin P/N：66A2-M020G2069R01

FX23L-20P-0.5SV10 match to Solepin P/N：66A2-M020G2089R01

FX23L-40P-0.5SV10 match to Solepin P/N：66A2-M040G2089R01

FX23L-60P-0.5SV10 match to Solepin P/N：66A2-M060G2089R01

FX23L-80P-0.5SV10 match to Solepin P/N：66A2-M080G2089R01

FX23L-100P-0.5SV10 match to Solepin P/N：66A2-M100G2089R01

FX23L-120P-0.5SV10 match to Solepin P/N：66A2-M120G2089R01

FX23L-20P-0.5SV12 match to Solepin P/N：66A2-M120G2109R01

FX23L-40P-0.5SV12 match to Solepin P/N：66A2-M120G2109R01

FX23L-60P-0.5SV12 match to Solepin P/N：66A2-M120G2109R01

FX23L-80P-0.5SV12 match to Solepin P/N：66A2-M120G2109R01

FX23L-100P-0.5SV12 match to Solepin P/N：66A2-M120G2109R01

FX23L-120P-0.5SV12 match to Solepin P/N：66A2-M120G2109R01

FX23-20P-0.5SV15 match to Solepin P/N：66A2L-M020G2128R01

FX23-40P-0.5SV15 match to Solepin P/N：66A2L-M040G2128R01

FX23-60P-0.5SV15 match to Solepin P/N：66A2L-M060G2128R01

FX23-80P-0.5SV15 match to Solepin P/N：66A2L-M080G2128R01

FX23-100P-0.5SV15 match to Solepin P/N：66A2L-M100G2128R01

FX23-120P-0.5SV15 match to Solepin P/N：66A2L-M120G2128R01

FX23-20P-0.5SV20 match to Solepin P/N：66A2L-M020G2178R01

FX23-40P-0.5SV20 match to Solepin P/N：66A2L-M020G2178R01

FX23-60P-0.5SV20 match to Solepin P/N：66A2L-M020G2178R01

FX23-80P-0.5SV20 match to Solepin P/N：66A2L-M020G2178R01

FX23-100P-0.5SV20 match to Solepin P/N：66A2L-M020G2178R01

FX23-120P-0.5SV20 match to Solepin P/N：66A2L-M020G2178R01

FX23-20S-0.5SH  match to Solepin P/N：66A2W-F020G2085R01

FX23-40S-0.5SH match to Solepin P/N：66A2W-F040G2085R01

FX23-60S-0.5SH match to Solepin P/N：66A2W-F060G2085R01

FX23-80S-0.5SH match to Solepin P/N：66A2W-F080G2085R01

FX23-100S-0.5SH match to Solepin P/N：66A2W-F100G2085R01

FX23-120S-0.5SH match to Solepin P/N：66A2W-F120G2085R01
