1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: Side insertion

3. Stacking height: 5~8mm

4. Number of cores: 10~80pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5/6/8/10/11/15/16/20/21mm

4. Number of cores: 20/40/60/80/100/120/160pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5/6/8/10/11/15/mm

4. Number of cores: 20/40/60/80/100/120/160/200pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 7/9/12/16mm

4. Number of cores: 10/20/40/60/80/100/120/140/150pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7.High speed 16Gbps

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 7/9/12/16mm

4. Number of cores: 10/20/40/60/80/100/120/140/150pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5mm

4. Number of cores: 40/80/120/160/200pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7.High speed 16Gbps

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 3~8mm

4. Number of cores: 6~80pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 6/8/9.75/11.75/12.75/14.75mm

4. Number of cores: 30/40/60/80pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7.X Y Z =0.50mm

1.0.80mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 5mm

4. Number of cores: 10/20/40/60/80/100/120/pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

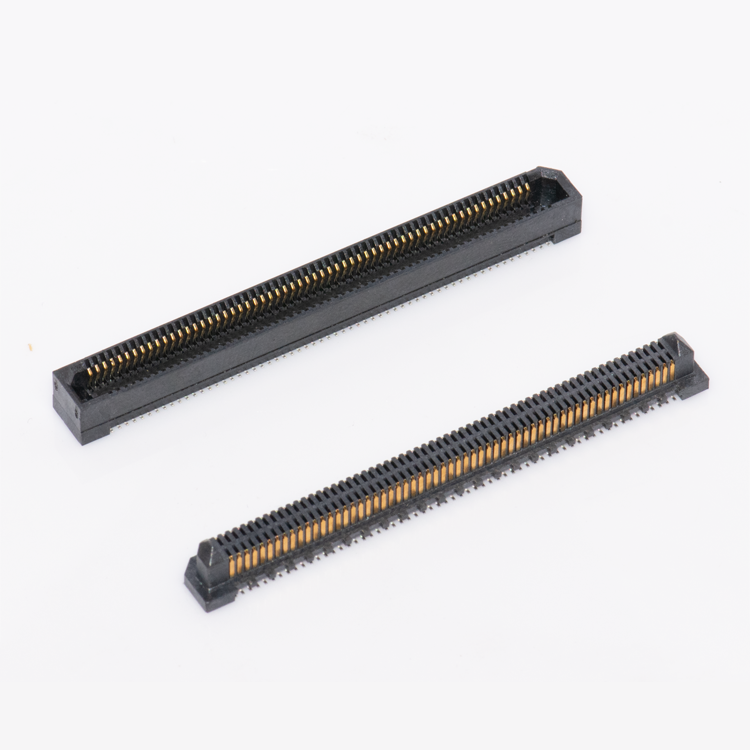

Detailed specifications

1. 0.8mm pitch

2. Connection method: horizontal / vertical /parallel

3. Stacking height: 7/9/10/12/15/18/22mm

4. Pin options: 120/150 (40/50/60/70/80/100/200/160/180 /200

5. The guiding design brings superior fit (guiding amount: ± 1.6mm)

6. The unique terminal contact design enhances the mating performance

7. Supports 56 Gbps PAM4 performance

7. Compatible with samtec's ERM8 and ERF8 series

8. Contact finish : Gold plating 3u-15u

9. Plastic material: LCP

10. Production cycle: 10 to 15 days

11. Packaging method: tape and reel
