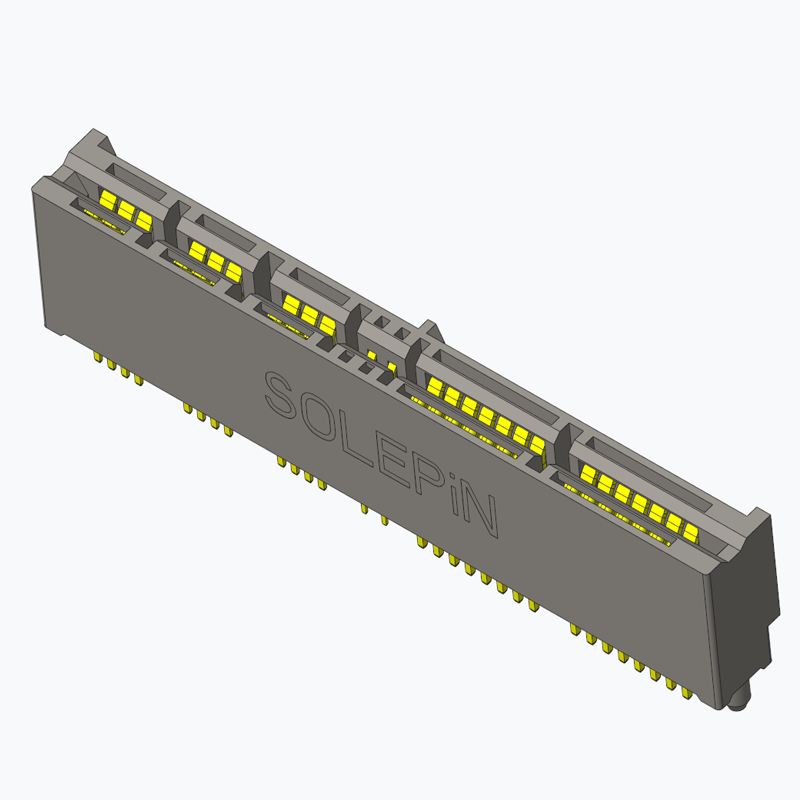

Detailed specifications

1. Connection method: Horizontal, vertical, side insertion

2. Current capacity for power pins : 100A/group * 2 groups;  30A/group * 3 groups

3. Current capacity for signal pins : 2A / pin , 2.54mm pitch

4. The larger guiding design facilitates the fit

5. The unique cooling design ensures that the temperature rise does not exceed 30 degrees

6. The recommended thickness of the PCB gold fingers is 1.60mm

7. Contact finish : Gold plating

8. Plastic material: LCP

9. Production cycle: 2-3 weeks

10. Packaging method: Tray packaging
