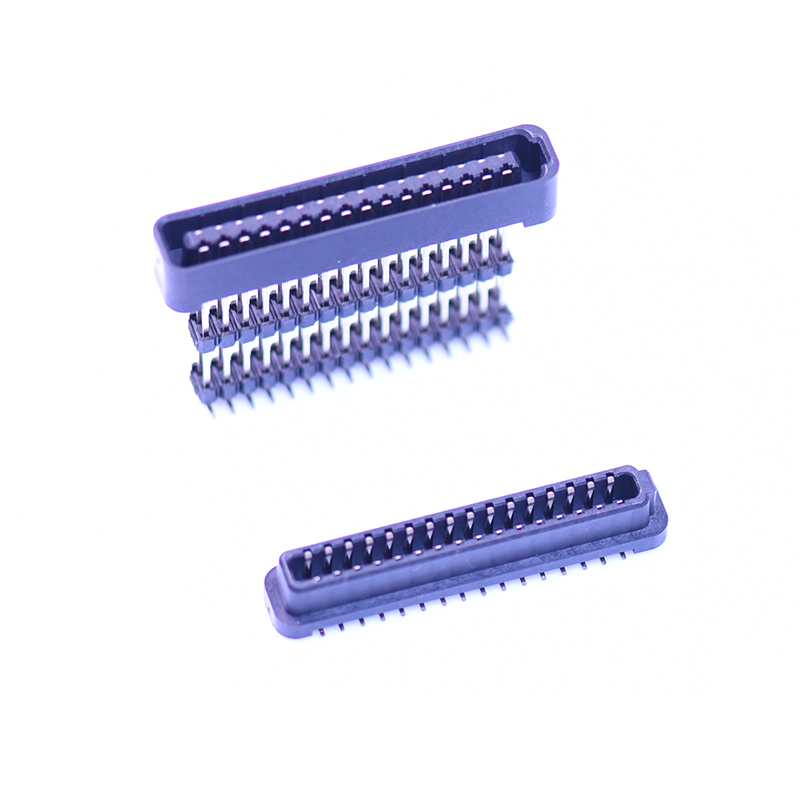

1.2.54mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 14.50~38.00mm

4. Number of cores:8~100pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

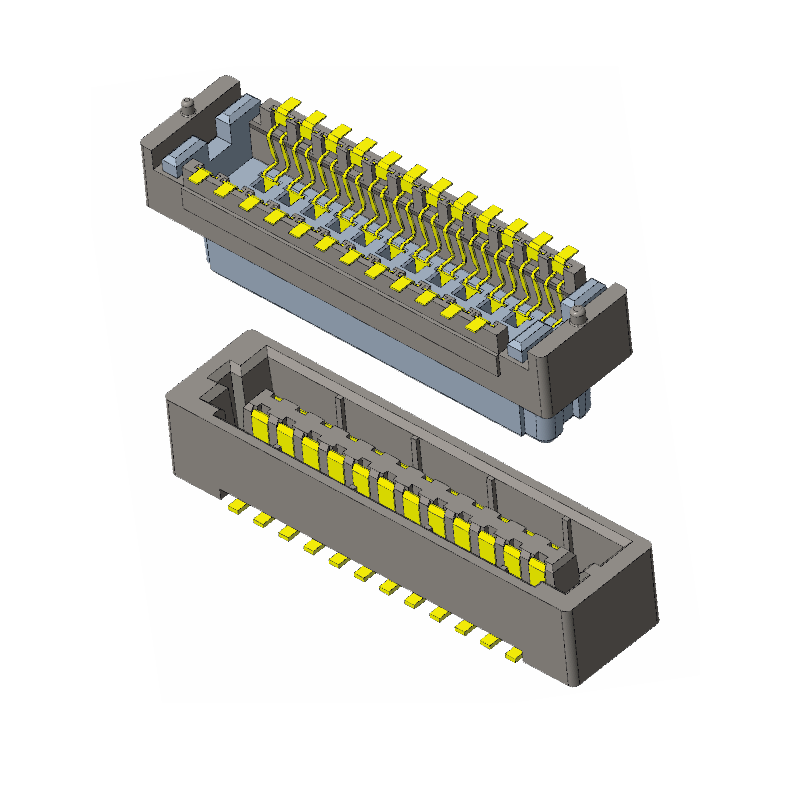

1.2.54mm pitch with anti-fool and anti-vibration

2. Connection method: vertical

3. Stacking height: 14.50~38.00mm

4. Number of cores:8~100pos

5. Guide design brings superior fit (guide amount: 1.6mm)

6. Unique terminal contact design improves contact performance

7. X Y  Z =0.70MM

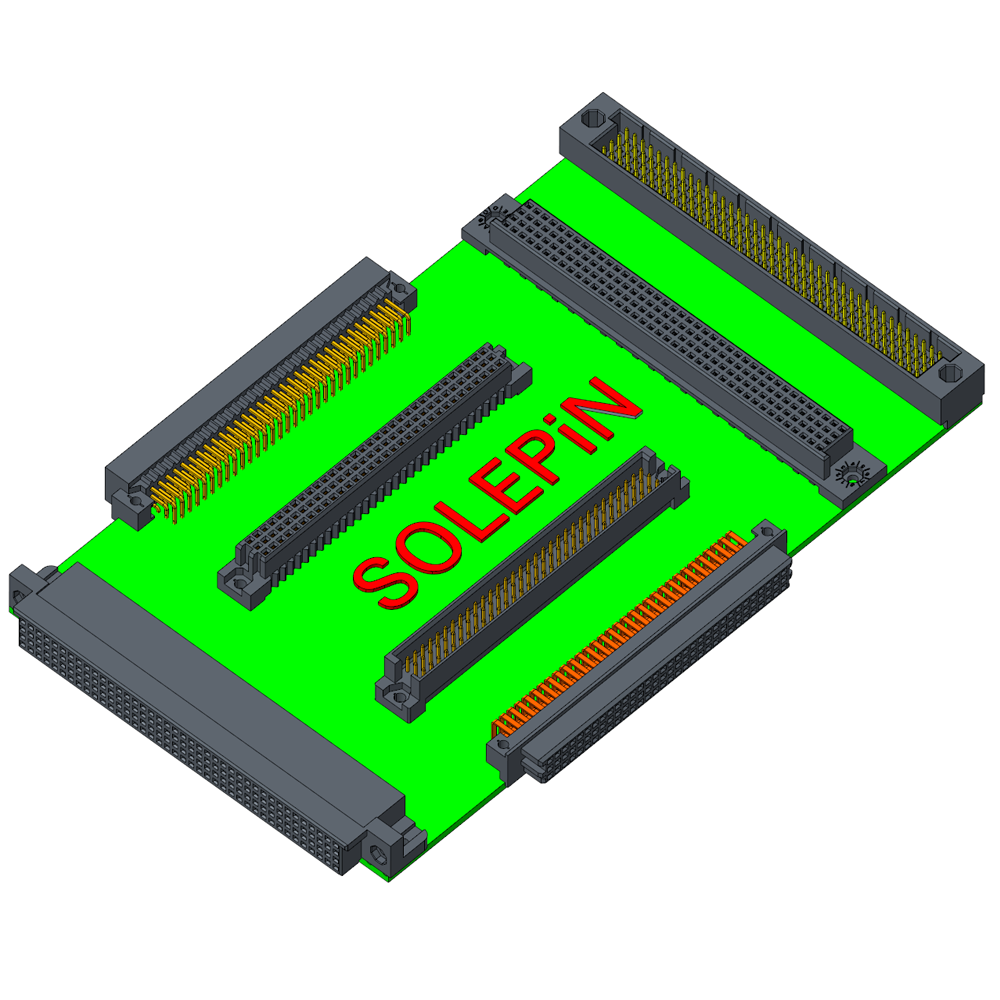

1. Connection method: horizontal /vertical/parallel

2. Stack height: 16.80-40mm

3. Number of cores: 20 to 400 pins

4. The guiding design brings superior fit (guiding amount: ± 1.6mm)

5. The unique terminal contact design enhances the mating performance

6. Supports 4 Gbps PAM4 performance

7. Supports full series combinations of 2-row, 3-row, 4-row and 5-row, straight insertion and bended insertion

8. Contact finish: Gold plating 3u-15u

9. Plastic material: PA9T

10. Production cycle: 2-3 weeks

11. Packaging method: Tray packaging

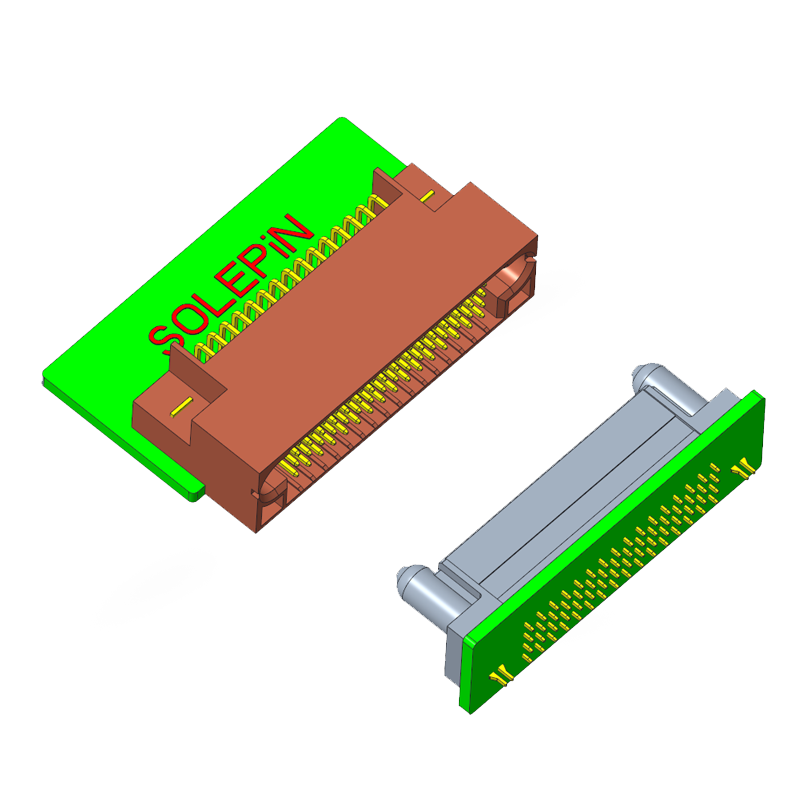

1. Signal PIN: 3A/PIN

2. Connection methods: Horizontal, vertical, side insertion

3. Signal PIN  combination options: 8 to 128 pins

4. Power PIN  combination options : 1 to 12 pins

5. Larger guiding design facilitates the fit

6. Cores options: 1+16........ any combination

7. Product Name and Specification:

8. Electroplating requirements: Gold plating

9. Plastic material: PA9T

10. Production cycle: 2-3 weeks

11. Packaging method: Tray packaging
